| Brand Name : | SXEGL |
| Model Number : | LM...LUU |
| Certification : | CE/FCC/EPA/ROSH/ISO |
| Delivery Time : | Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size. |
| Payment Terms : | Visa /Mastercard/PayPal/Apple Pay/Google Pay |
| Supply Ability : | All products have passed CE certification and comply with EU RoHS environmental standards |
| Price : | $3.5-$141 |

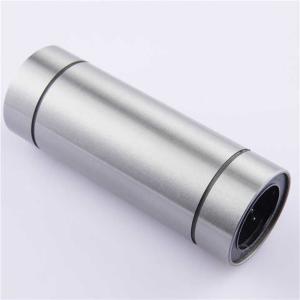

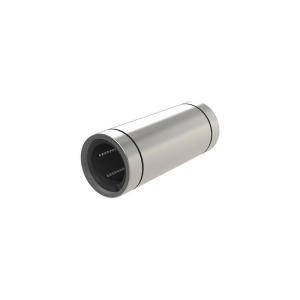

High Speed Small Linear Bearing Anti Friction LM Bearing Wear Resistant
SEXGL Linear Bearings deliver robust performance in demanding automation environments, trusted by industry leaders like BYD (automated welding systems) and BOE (LCD panel transport lines) across North America, Europe, Southeast Asia, and South America. Engineered to optimize load capacity, alignment stability, and operational longevity, our linear motion solutions are redefining precision across industries.
Characteristics
High sensitivity: It can respond rapidly to tiny external forces or commands, achieving sensitive linear motion control. It is suitable for occasions such as automated equipment and precision instruments that have high requirements for motion response speed and sensitivity.
Matters Need Attention
Apply an appropriate amount of grease before installation and replenish it in a timely manner during use. For metal linear bearings, if they are lubricated with grease, remove the anti-corrosion oil first and then add grease (it is recommended to use lithium soap grease with a viscosity mark of n0.2); when lubricated with oil, select an ISO viscosity grade of VG15 - 100 lubricating oil according to the temperature, but oil lubrication is not suitable for sealed bearings without holes. Plastic linear bearings are self-lubricating and do not require additional oil supply for maintenance.
Table parameters
| Model | Number of ball rows | Weight (gf) | Inner diameter | Outer diameter | ||
| dr | Tolerance | D | Tolerance | |||
| LM3LUU | 4 | 3 | 3 | 0 | 7 | 0 |
| -0.01 | -0.013 | |||||
| LM3CLUU | 4 | 3 | 3 | 0 | 7 | 0 |
| -0.01 | -0.013 | |||||
| LM4LUU | 4 | 4 | 4 | 0 | 8 | 0 |
| -0.01 | -0.013 | |||||
| LM4CLUU | 4 | 4 | 4 | 0 | 8 | 0 |
| -0.01 | -0.013 | |||||
| LM5LUU | 4 | 8 | 5 | 0 | 10 | 0 |
| -0.01 | -0.013 | |||||
| LM5CLUU | 4 | 8 | 5 | 0 | 10 | 0 |
| -0.01 | -0.013 | |||||
| LM6LUU | 4 | 16 | 6 | 0 | 12 | 0 |
| -0.01 | -0.013 | |||||
| LM6CLUU | 4 | 16 | 6 | 0 | 12 | 0 |
| -0.01 | -0.013 | |||||
| LM8LUU | 4 | 31 | 8 | 0 | 15 | 0 |
| -0.01 | -0.013 | |||||
| LM8CLUU | 4 | 31 | 8 | 0 | 15 | 0 |
| -0.01 | -0.013 | |||||
| LM10LUU | 4 | 62 | 10 | 0 | 19 | 0 |
| -0.01 | -0.016 | |||||
| LM10CLUU | 4 | 62 | 10 | 0 | 19 | 0 |
| -0.01 | -0.016 | |||||
| LM12LUU | 5 | 80 | 12 | 0 | 21 | 0 |
| -0.01 | -0.016 | |||||
| LM12CLUU | 5 | 80 | 12 | 0 | 21 | 0 |
| -0.01 | -0.016 | |||||
| LM13LUU | 5 | 90 | 13 | 0 | 23 | 0 |
| -0.01 | -0.016 | |||||
| LM13CLUU | 5 | 90 | 13 | 0 | 23 | 0 |
| -0.01 | -0.016 | |||||
| LM16LUU | 5 | 145 | 16 | 0 | 28 | 0 |
| -0.012 | -0.016 | |||||
| LM16CLUU | 5 | 145 | 16 | 0 | 28 | 0 |
| -0.012 | -0.016 | |||||
| LM20LUU | 6 | 180 | 20 | 0 | 32 | 0 |
| -0.012 | -0.019 | |||||
| LM20CLUU | 6 | 180 | 20 | 0 | 32 | 0 |
| -0.012 | -0.019 | |||||
| LM25LUU | 6 | 440 | 25 | 0 | 40 | 0 |
| -0.012 | -0.019 | |||||
| LM25CLUU | 6 | 440 | 25 | 0 | 40 | 0 |
| -0.012 | -0.019 | |||||
| LM30LUU | 6 | 580 | 30 | 0 | 45 | 0 |
| -0.012 | -0.019 | |||||
| LM30CLUU | 6 | 580 | 30 | 0 | 45 | 0 |
| -0.012 | -0.019 | |||||
| LM35LUU | 6 | 795 | 35 | 0 | 52 | 0 |
| -0.012 | -0.022 | |||||
| LM35CLUU | 6 | 795 | 35 | 0 | 52 | 0 |
| -0.012 | -0.022 | |||||
| LM40LUU | 6 | 1170 | 40 | 0 | 60 | 0 |
| -0.012 | -0.022 | |||||
| LM40CLUU | 6 | 1170 | 40 | 0 | 60 | 0 |
| -0.012 | -0.022 | |||||
| LM50LUU | 6 | 2100 | 50 | 0 | 80 | 0 |
| -0.02 | -0.025 | |||||
| LM50CLUU | 6 | 2100 | 50 | 0 | 80 | 0 |
| -0.02 | -0.025 | |||||
| LM60LUU | 6 | 3500 | 60 | 0 | 90 | 0 |
| -0.02 | -0.025 | |||||
| LM60CLUU | 6 | 3500 | 60 | 0 | 90 | 0 |
| -0.02 | -0.025 | |||||
|
|
